Field One Repair Kit

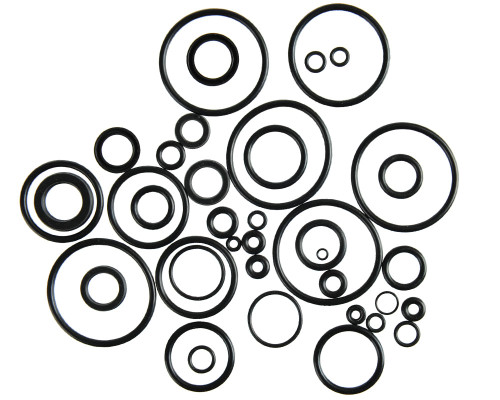

This kit provides 1 complete o-ring rebuild for the marker and Cam Drive ASA. See below for description of contents and installation location.
This kit provides 1 complete o-ring rebuild for the marker and Cam Drive ASA. See below for description of contents and installation location.
Part Qty Location
1x3mm O-Ring 3 Solenoid to Manifold to Body
1x4mm O-Ring 2 Grip Frame to Body/ Volume Chamber Tube to Brass Shutoff/ ASA Main Seal Support
1x4.5mm O-Ring 1 ASA to Grip Frame
1x6.5mm O-Ring 1 LPR to Body
1x8mm O-Ring 2 Outside of 2959G Adaptor
1x14mm O-Ring 1 Back Block to Ram Housing
1x25mm O-Ring 1 Inside Volume Chamber Rear
005 O-Ring 1 ASA Inside Main Seal
006 O-Ring 4 Outside of Ram Housing
007 O-Ring 2 Outside of Ram Housing(Tight!)
010 O-Ring 1 Ram (Bumper)
011 O-Ring 2 Rear of Ram/ Belville Spring Stack Retainer
012 O-Ring 2 Inside Brass Shutoff/LPR Piston
015 O-Ring 3 Bolt/ ASA Main Seal
016 O-Ring 1 HPR Piston
018 O-Ring 2 Outside of Brass Shutoff/ Reg Body to Main Body
021 O-Ring 2 Outside of Volume Chamber
110 O-Ring 1 Inside of Brass Shutoff
114 Square O-Ring 1 Front of Volume Chamber (Bumper)
U-Cup 3/8x9/16x3/32 O-Ring 1 Inside Front of Volume Chamber
